ANALOG TO DIGITAL CONVERTERS





U2110 / U2111



MCN HOME

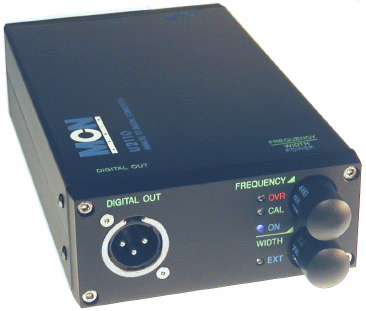

STEREOPHONIC PORTABLE ANALOG TO DIGITAL CONVERTER



The U2110 is a 24 bit / 96 kHz high resolution analog to digital converter.
It offers two balanced transformerless analog inputs for Left and Right channels on the rear panel, one AES/EBU digital output on the front panel.

The fully balanced design implemented in the analog front end and the converter stages provide noise and distorsion free signal processing, with no phase alteration. A specific algorithm allows 16 and 20 bit resolutions to be obtained through dithering of the 24 bit data flow, protecting the audio signal definition at low level.

A high stability internal master clock is the reference for 44.1 kHz, 48 kHz and 96 kHz sampling frequencies and 16, 20 and 24 bit quantizations.
Small sized and portable, the U2110 is an ideal companion for the  U1126 or the  U1127 preamplifier.



front panel rear panel

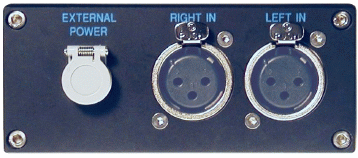

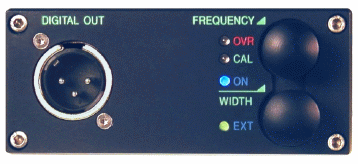

U2110 Front Panel U2110 Rear Panel



SPECIFICATIONS
Analog Section

LEFT AND RIGHT INPUTS
Balanced Transformerless.
Impedance 10.25 kOhms +/- 1% // 100 pF +/- 10%
RF Filter Included.
Maximum level +20.8 dBm
Connector  Female XLR.

Digital Section

AES/EBU DIGITALOUTPUT
Nominal level 3V peak/peak typical. Under 110 Ohms load.
Maximum level
6V peak/peak typical.
 Not loaded.
Impedance 110 Ohms +/- 5%
Structure
 Balanced
 Transformer coupled
Connector  Male XLR.

A/D CONVERSION
Internal Clock
 44.1 kHz / 48 kHz / 96 kHz Selectable from front panel switch.
Quantization 16 / 20 / 24 bits. Selectable from front panel switch.
16 bit and 20 bit resolutions are obtained through 24 bit converter output dithering, in order to reduce rounding effects and to preserve linearity at low output level.
Calibration 0 dB digital full scale.
 @ +19 dBm on analog inputs.
-15 dB digital full scale. @ +4 dBm on analog inputs.
Dynamic range
 120 dB A weighted
Distorsion
 0.0006 %
 Measured at -1dB of full scale
Residual noise -104 dB FS
 Measured at -1dB of full scale
Phase
 Linear phase
Phase shift
 < 6ø
 Measured at 20 Hz
Bandwidth
 1.6 Hz to 21.4 kHz, measured at -3dB 44.1 kHz sampling
1.8 Hz to 23.3 kHz, measured at -3dB 48 kHz sampling
3.6 Hz to 46.7 kHz, measured at -3dB 96 kHz sampling

Common Section

INDICATORS
OVeR Overload Analog stage or A/D converter overload.
CALibration Indicates that calibration is in progress.
 Flashes during analog to digital converter calibration process. Calibration is activated at power up and after each change of sampling frequency or quantization.
ON Power on.
 Lit when the unit ispowered, flashes when batteries are low.
EXT
 Externally powered. Lit when running from external power supply.

GENERAL
Battery powered 8 alcaline batteries, 1.5V AA/LR6.
External 12 V / 400 mA on rear LEMO connector.
Autonomy 5 hours minimum.
Temperature of Operation -20 øC / +60 øC.
Size 105 x 45 x 170 mm.
Weight 1200 g, with 8 alcalines batteries.

Download U2110 User's Manual - English version
Download U2110 User's Manual - French version
Download U2110 Short Form- French version

Due to permanent technical improvements, specifications listed here can change without prior notification.
